Creating Tray and Status Masters in SwilERP
How to Create Tray & Status Masters in SwilERP Software
Tray Master:
Tray Master helps us organize and handle trays while making things in a business. It makes our work smoother and more efficient by managing how we use these trays. Basically Tray Master usages in SwilSORT & SwilPOS mobile applications. In this article, we'll learn how to create Tray Master to improve our order processing and make everything easier!
Start with Login in the SwilERP dashboard to initiate the process:

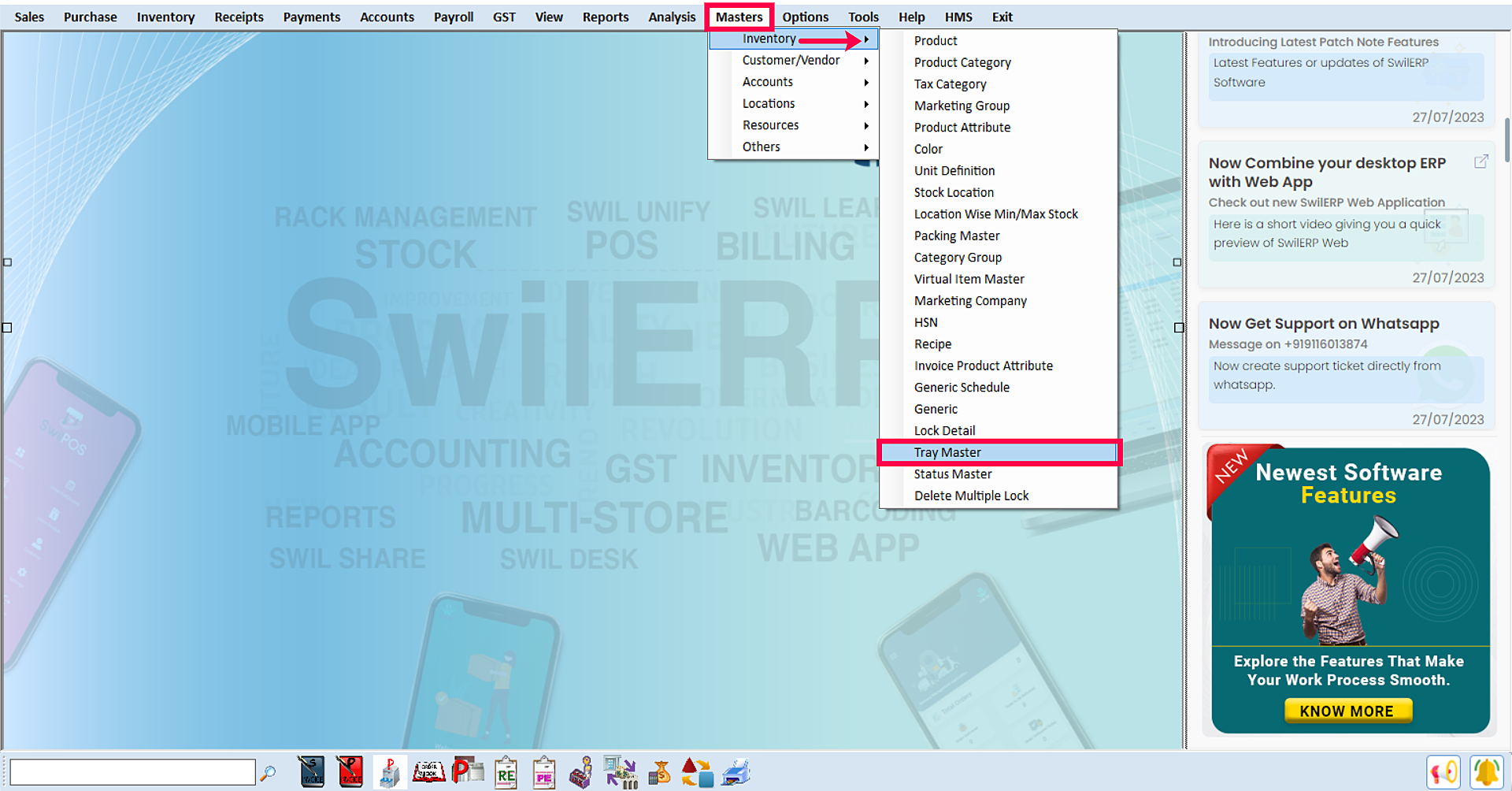

- Go to the Masters menu.
- Select Inventory > Tray Master.
Reference Image:
Process to create Tray Master:
- To create a new Tray Master, click on the "New" button.
- Users can view all the created Tray Masters here.
- If users want to edit in the previously created Tray, they can do it with the Edit option.
- You can use Print and Delete options as per requirements.
Reference Image:

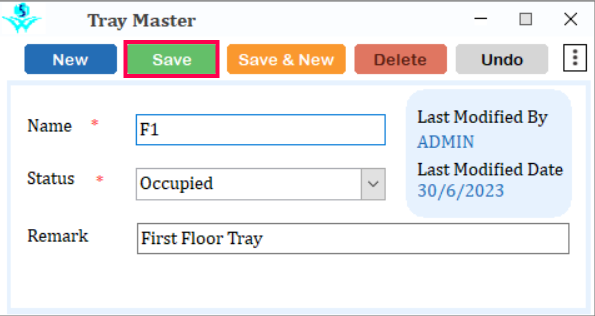

- Tray Name: Enter the name of the tray.
- Tray Status: Update if the tray is vacant or occupied.
- Remarks: Add any additional notes or comments.
- To save the window click on the Save option.
Reference Image:
Status Master:
Status Master is a system for creating and assigning task statuses with names, colors, and responsible employees, facilitating better workflow management and improved communication within the organization. Basically Status Master usages in SwilSORT & SwilPOS mobile applications. Following the below-given process to create Status Master:

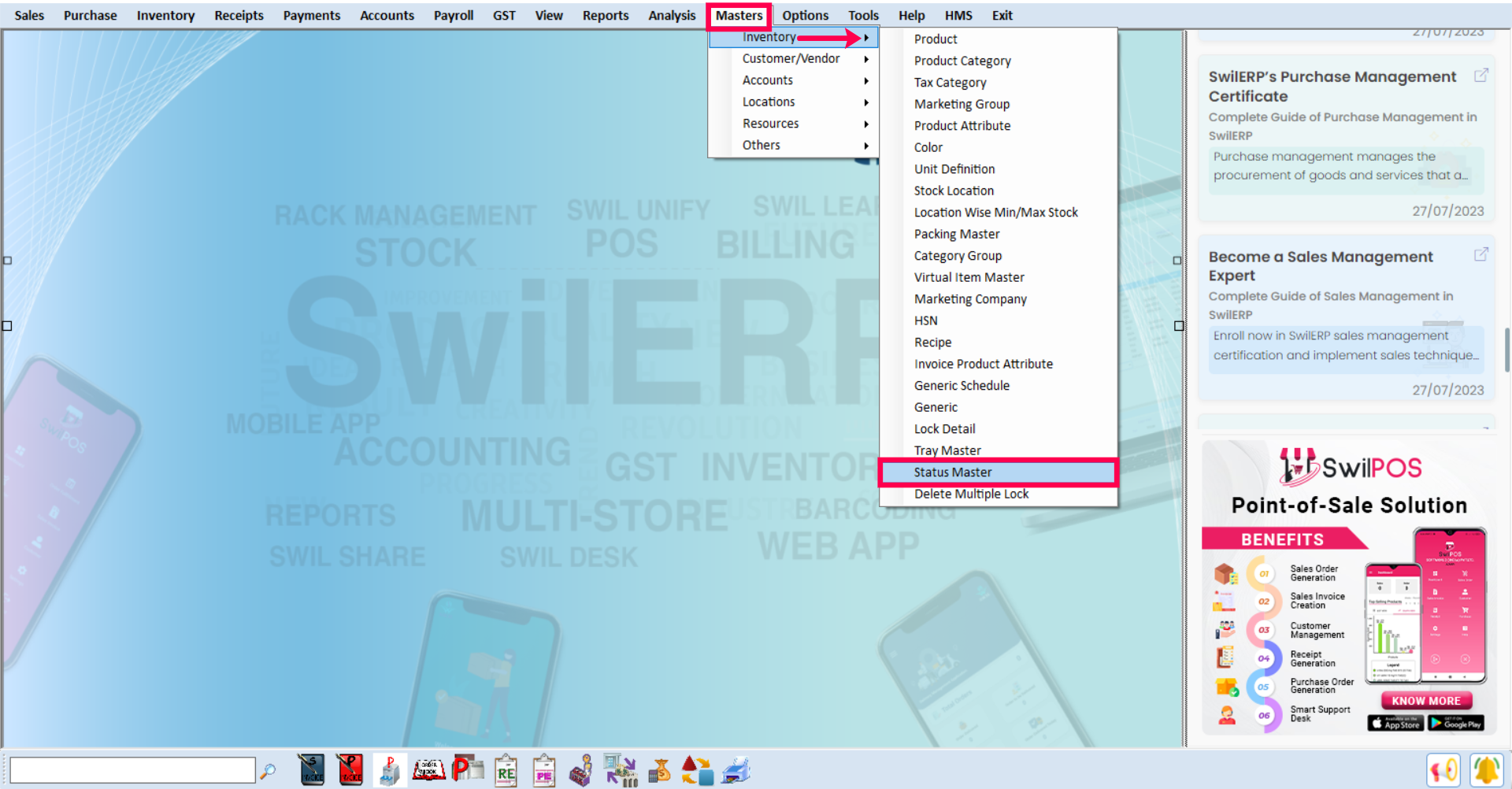

- Go to the Masters menu.
- Select Inventory > Status Master.
Reference Image:
Process to create Status Master:

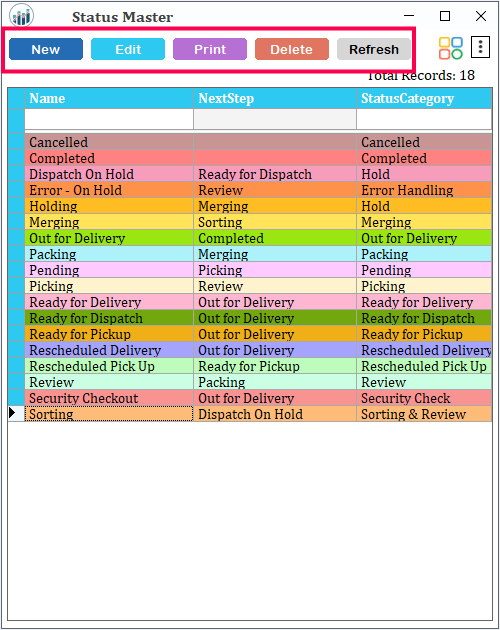

- Here you will see all the by default created Status Masters.
- Click on the New button to create a new status master.
- As per your convenience, you can select Edit, Print, and Delete options.
Reference Image:

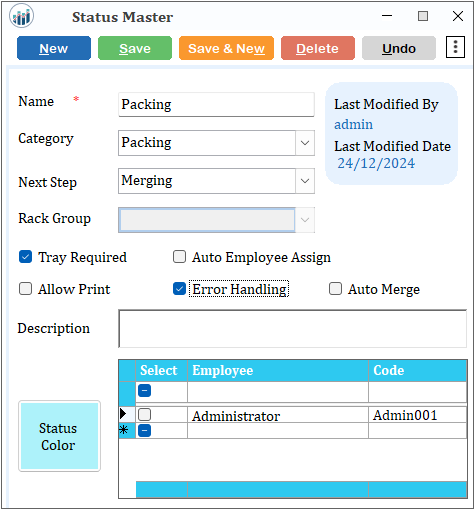

- Status Master Name: Enter the name of the status master you want to create.
- Category: Assign a category to the status for better organization and filtering.
- Next Step: Update the next step or action associated with the status for clear workflow management.
- Status Color: Define a color for the status to easily identify and differentiate between various statuses.
- Assign Employees: Select specific employees who will handle further processing for this status, streamlining the workflow and responsibilities.
- After entering the all details, click on the Save option to save the details.
Note: Only selected employee has access to both SwilPOS and SwilSORT mobile apps' Status Master features.
Reference Image:
|
|
