How to Enable and Verify Customer File (C File) Masking in IMS in Unisolve Software

A new update has been added in the Unisolve IMS feature to protect customer information while generating IMS files. With this update, users can enable customer data masking through the Zip Code option available in IMS Registration.

Once this option is enabled, sensitive customer details such as customer name, address, phone number, DL number, and GSTIN will be masked automatically in the generated Customer File (C File). Only required fields like Customer Code, City, State, and ZIP Code will remain visible.

This masking process is applicable for:

  • Manual Reports (Text – PIPE Format)
  • Automated Reports (API Output)
Process to Enable and Verify IMS Customer File Masking

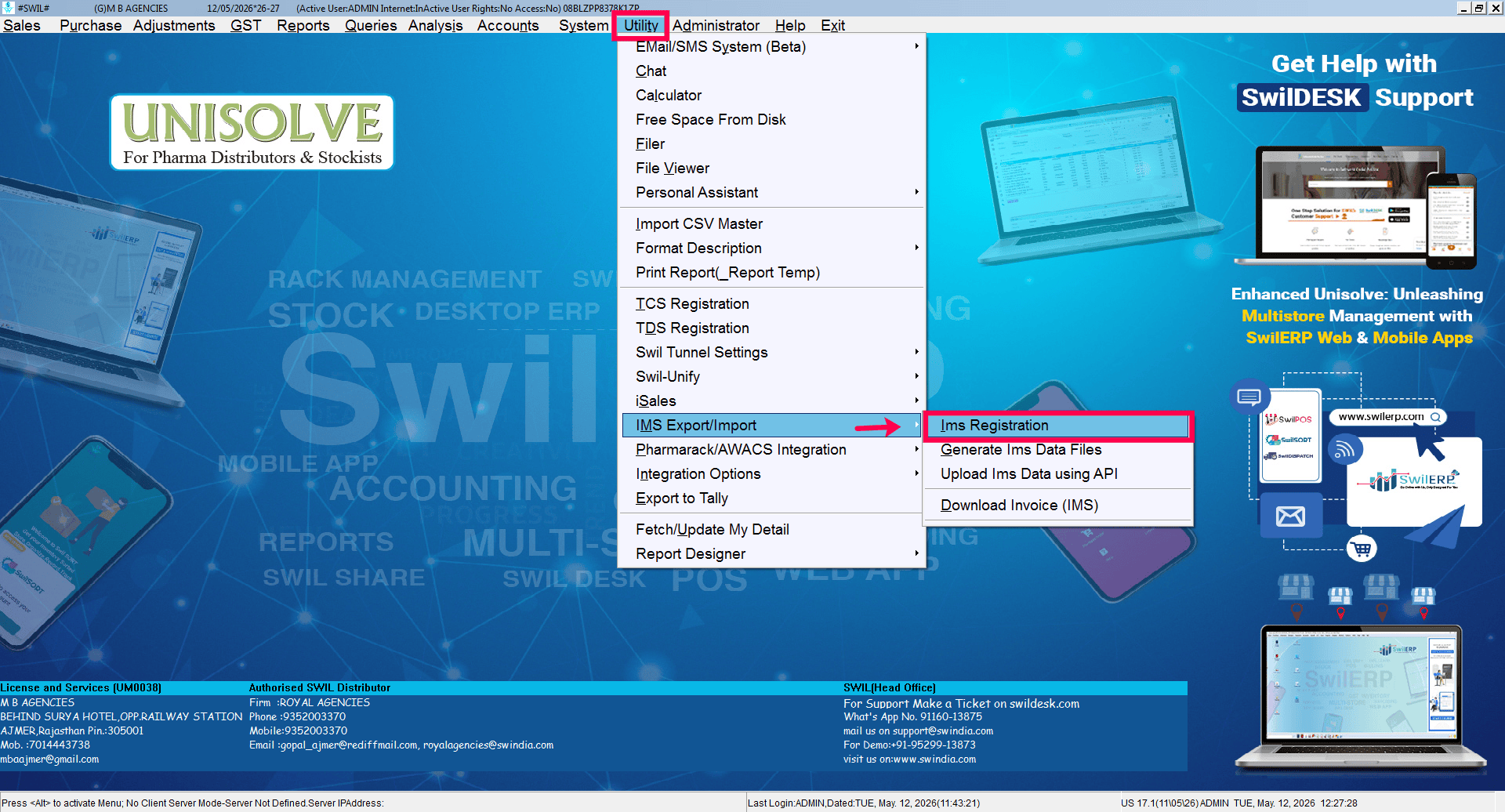

Step 1: Open IMS Registration

  1. Go to: Utility → IMS Export/Import → IMS Registration.
Reference Image:

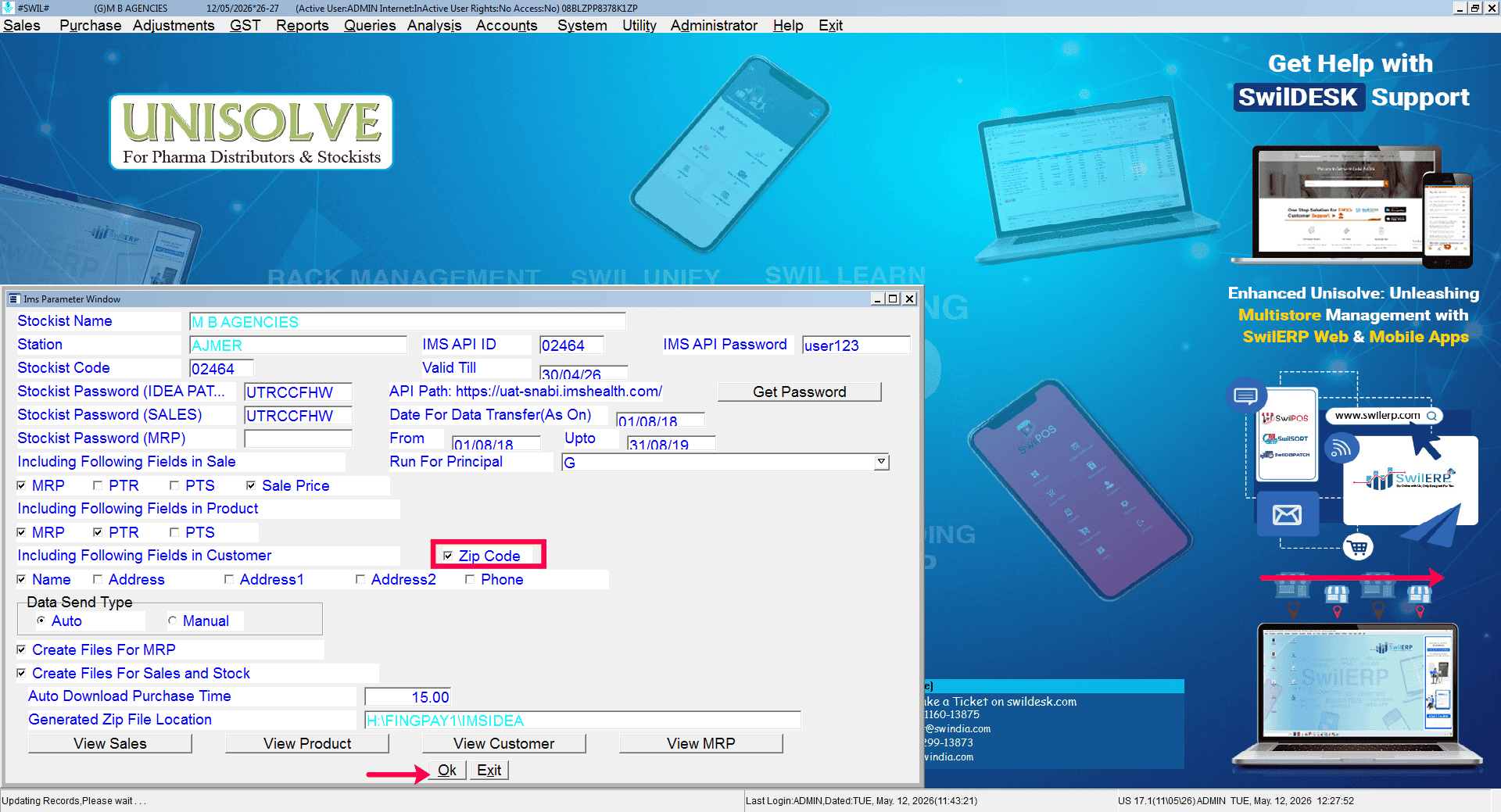

Step 2: Enable Zip Code Option

In the IMS Parameter Window, enable the Zip Code checkbox.
  1. Locate the Zip Code option.
  2. Tick/Enable the checkbox.
  3. Click on OK to save the settings.
Important Note
  • Unchecked (No): Customer data will appear in normal format.
  • Checked (Yes): Customer data will be masked automatically.
Reference Image:

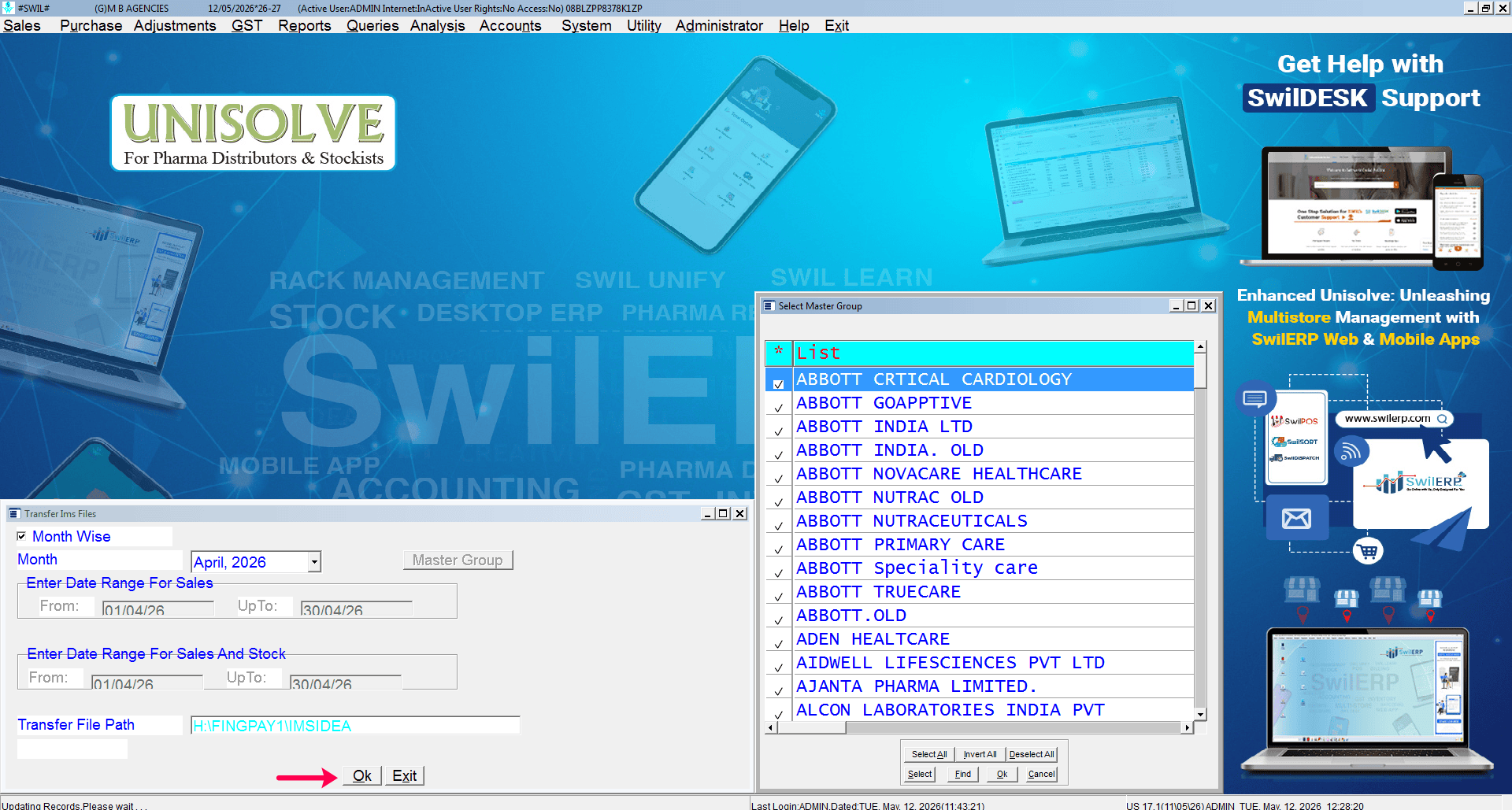

Step 3: Generate IMS Data Files

  1. Go to: Utility → IMS Export/Import → Generate IMS Data Files.
Reference Image:

  1. Select:
    1. Month
    2. Date Range (if required)
    3. Master Group
  2. Click on OK.
  3. IMS files will be generated in the selected file path.
Reference Image:


Step 4: Extract the ZIP File

After generating the IMS files:
  • Open the generated file location.
  • Find the ZIP file created by the system.
  • Extract/Unzip the file.
Purpose

The extracted folder will contain the Customer File (C File) in text format.

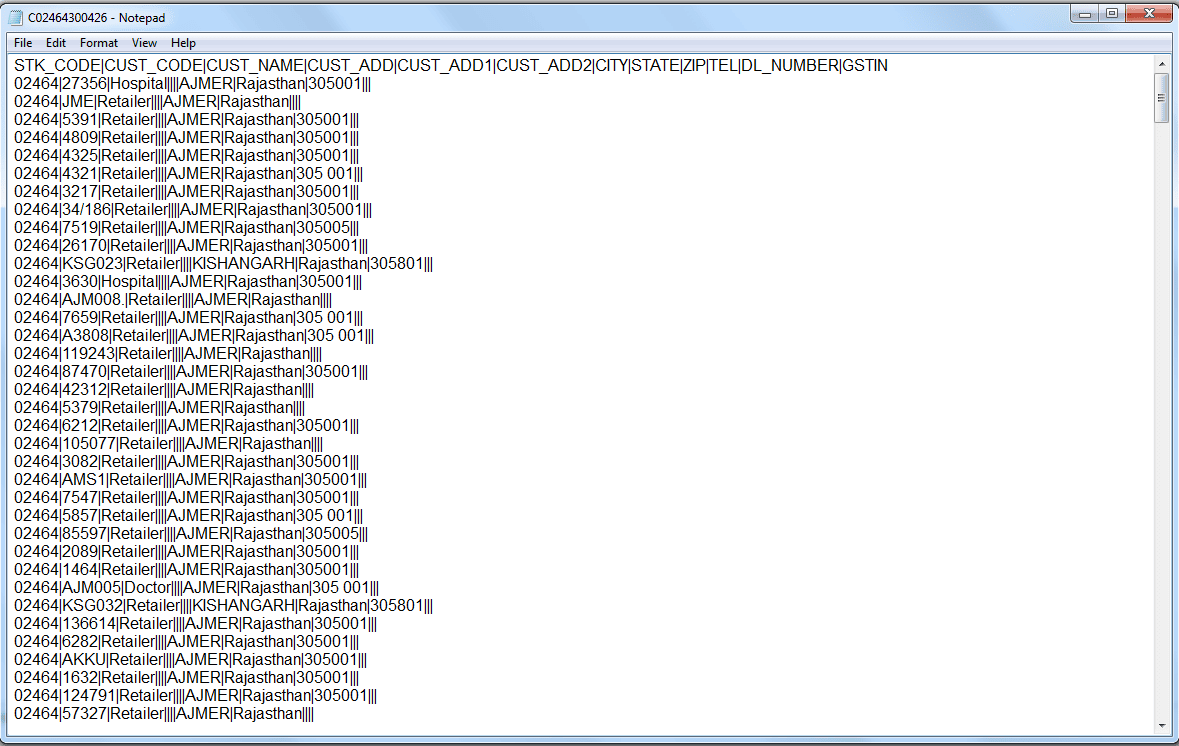

Step 5: Verify the Masked Customer File

  1. Open the extracted Customer File (C File) in Notepad.
Changes You Will See in the File:

Blank Fields in Masked File
The following fields will appear blank:
  • Customer Address
  • Address1
  • Address2
  • Phone Number
  • DL Number
  • GSTIN
Fields That Will Remain Visible
  • Customer Code
  • City
  • State
  • ZIP Code

Reference Image:

Need Support?
  1. After doing the above-given process if the user required support, then they can generate a new ticket for online support through www.swildesk.com.
  2. You can also send a mail to our support mail id support@swindia.com for support.
