How to create Transaction Series in SwilERP (RetailGraph)

Start with Login in the SwilERP dashboard window to initiate the process:

1. Go to the Masters menu.
2. Select the Others > Transaction Series.

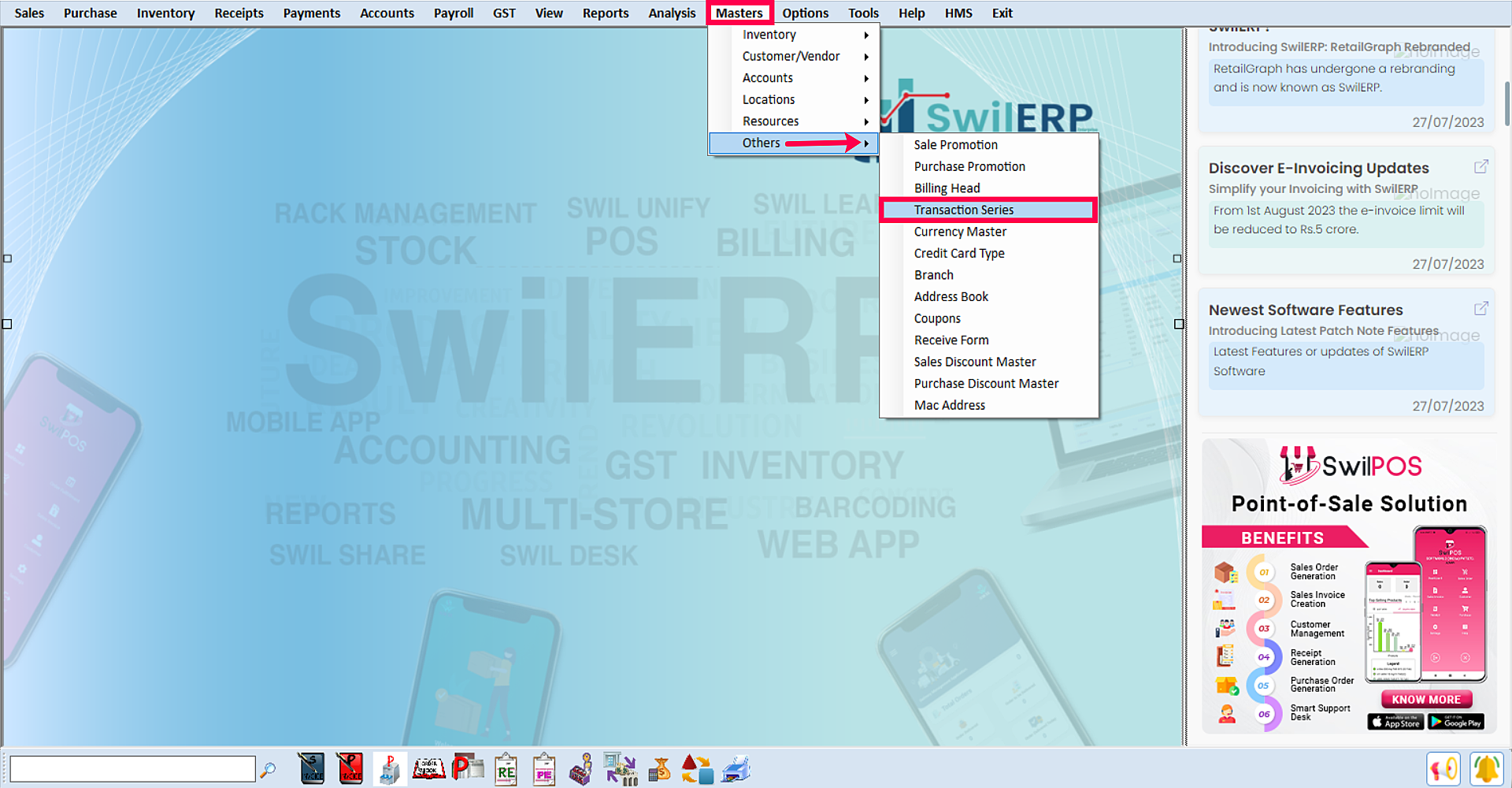

Reference Window:

SwilERP Dashboard Window

How to create a Transaction Series:

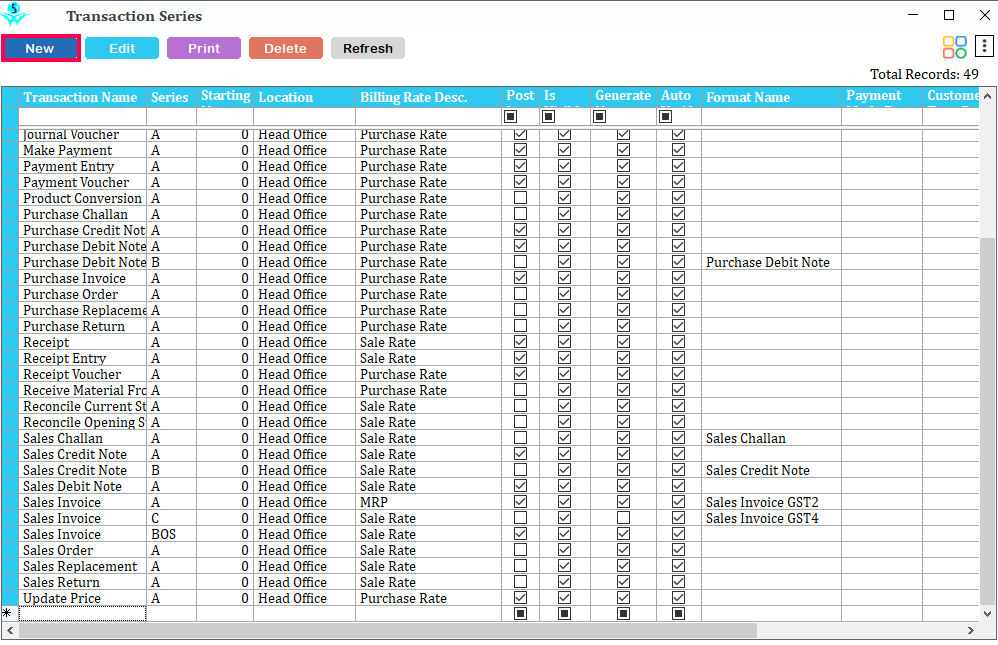

1. Here you will see the series of every Transaction.

2. If users want to create new series, then click on New Option.

3. The user can also Edit an already-created Series.

4. Print, Delete, and Refresh options are also available.

1. After clicking on the New tab, a new window of the transaction series will appear.

1. Now, Enter the Transaction Name in which you want to create a series, i.e., sales invoice, sales challan, sales credit note, sales debit note, and purchase debit note. Suppose select Sales Invoice.

2. Enter the Name of the Series for which  Transaction you want to create a series.
3. Select the Location of your selected transaction.

4. Enter the Series Starting Number that you want.
5. Format Name, Descriptions, and Document columns are automatically filed.
6. Select Billing Rate as in MRP, Sales rate, Purchase rate, or Cost rate.
7. Now, select the options in which the series will be applied on:

1. In case selection of "All" in series, All products will show in the transaction.

2. In case selection of "Taxable" in series, Only taxable products will show in transactions that have a tax rate of More Than Zero in master.

3. In case selection of "Exempted" in series, Only taxable products will show in transactions that have a tax rate of Zero in master.

    Note:  Kindly fill in all the mandatory fields that are showing with a red star mark.

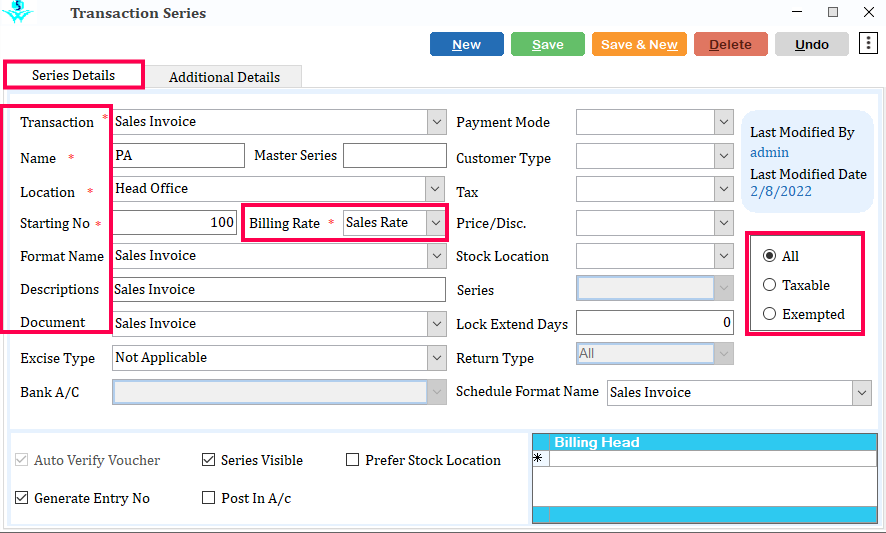

Reference Window:

Transaction Series

Select the Additional Details section:

1. There is an Allow option; you can select options in which series will be applied on.

2. And now to save the window click on the Save option.

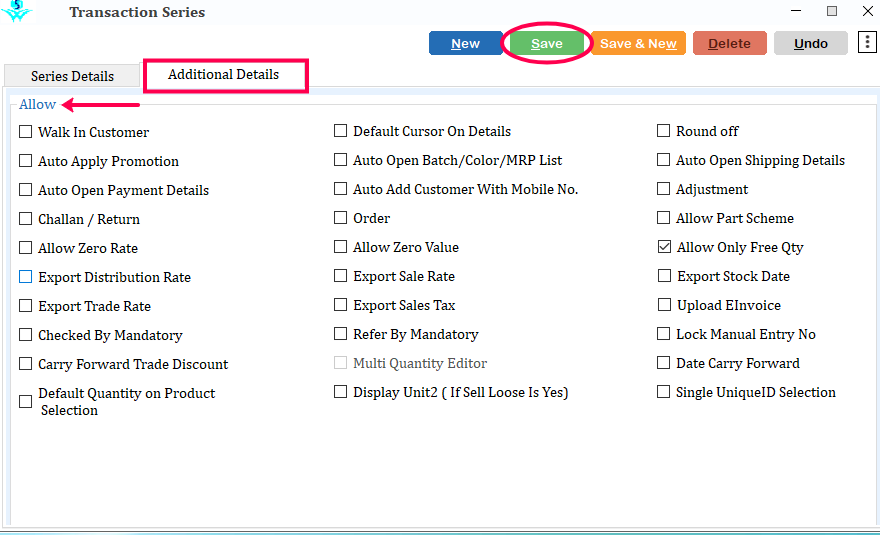

Reference Window:

Additional Details Window
